Optimization of Photonic Devices: Implementation of Auto-Differentiable Numerical Methods in Open-Source Software

Séminaire GDR Ondes

Benjamin Vial

Imperial College London

[email protected]

Introduction

Introduction

\[ \usepackage{amsmath,amssymb} \newcommand{\e}{\varepsilon} \newcommand{\exx}{\e_{xx}} \newcommand{\eyy}{\e_{yy}} \newcommand{\ea}{\e_{a}} \newcommand{\ezz}{\e_{zz}} \newcommand{\exy}{\e_{xy}} \newcommand{\eyx}{\e_{yx}} \newcommand{\muxx}{\mu_{xx}} \newcommand{\muyy}{\mu_{yy}} \newcommand{\mua}{\mu_{a}} \newcommand{\muzz}{\mu_{zz}} \newcommand{\ef}{\e_{\rm f}} \newcommand{\ed}{\e_{\rm d}} \newcommand{\tdf}{\tan \delta_{\rm f}} \newcommand{\td}{\tan \delta} \newcommand{\Eb}{E_{\rm B}} \newcommand{\Em}{\B{\mathcal{E}}} \newcommand{\Hm}{{\mathcal{H}}} \usepackage{bm} \newcommand{\B}[1]{\boldsymbol{#1}} \newcommand{\tens}[1]{\B{#1}} \newcommand{\re}{\mathrm{Re}\,} \newcommand{\im}{\mathrm{Im}\,} \newcommand{\grad}{\B{\nabla}} \newcommand{\ddiv}{\B{\nabla}\cdotp} \newcommand{\curl}{\B{\nabla}\times} \newcommand{\dt}{\mathrm{d}} \newcommand{\etens}{\tens{\e}} \newcommand{\h}[1]{\tilde{#1}} \newcommand{\T}[1]{#1^{\rm T}} \newcommand{\lp}{\left(} \newcommand{\rp}{\right)} \newcommand{\bra}{\left\langle} \newcommand{\ket}{\right\rangle} \newcommand{\mn}[1]{\bra #1 \ket} \newcommand{\D}{\partial} \newcommand{\dd}{\rm d} \newcommand{\der}[2]{\frac{\D #1}{\D #2}} \newcommand{\rhof}{\tilde{\rho}} \newcommand{\rhop}{\hat{\rho}} \newcommand{\matthree}[9]{ \begin{pmatrix} #1 & #2 & #3\\ #4 & #5 & #6\\ #7 & #8 & #9 \end{pmatrix} } \newcommand{\ehom}{\tilde{\etens}} \newcommand{\ezaniso}{\matthree{\exx}{\ea^\star}{0}{\ea}{\eyy}{0}{0}{0}{\ezz}} \newcommand{\muzaniso}{\matthree{\muxx}{\mua^\star}{0}{\mua}{\muyy}{0}{0}{0}{\muzz}} \newcommand{\LSO}{L^2({{\rm\textbf{curl}}}, \Omega)} \newcommand{\rpara}{\B{r_\parallel}} \newcommand{\densf}{\tilde{p}} \newcommand{\densp}{\hat{p}} \newcommand{\exxh}{\h{\e}_{xx}} \newcommand{\eyyh}{\h{\e}_{yy}} \newcommand{\exyh}{\h{\e}_{xy}} \newcommand{\eyxh}{\h{\e}_{yx}} \newcommand{\ezzh}{\h{\e}_{zz}} \newcommand{\tdhxx}{\tan \h{\delta}_{xx}} \newcommand{\tunh}{\h{\eta}} \]

What is topology optimization?

A mathematical method that optimizes material layout within a given design space, for a given set of sources, boundary conditions and constraints with the goal of maximizing the performance of the system

Topology optimization Hello World!: Maximizing a beam stiffness with fixed volume fraction (Bleyer 2018)

Structural Engineering

Qatar National Convention Centre

Aeronautics

Airplane wing (Aage et al. 2017)

Photonics

(Molesky et al. 2018)

Topology optimization: recipes

• Density function
  \(p \in [0,1]\): material distribution in design domain \(\Omega_{\rm des}\)

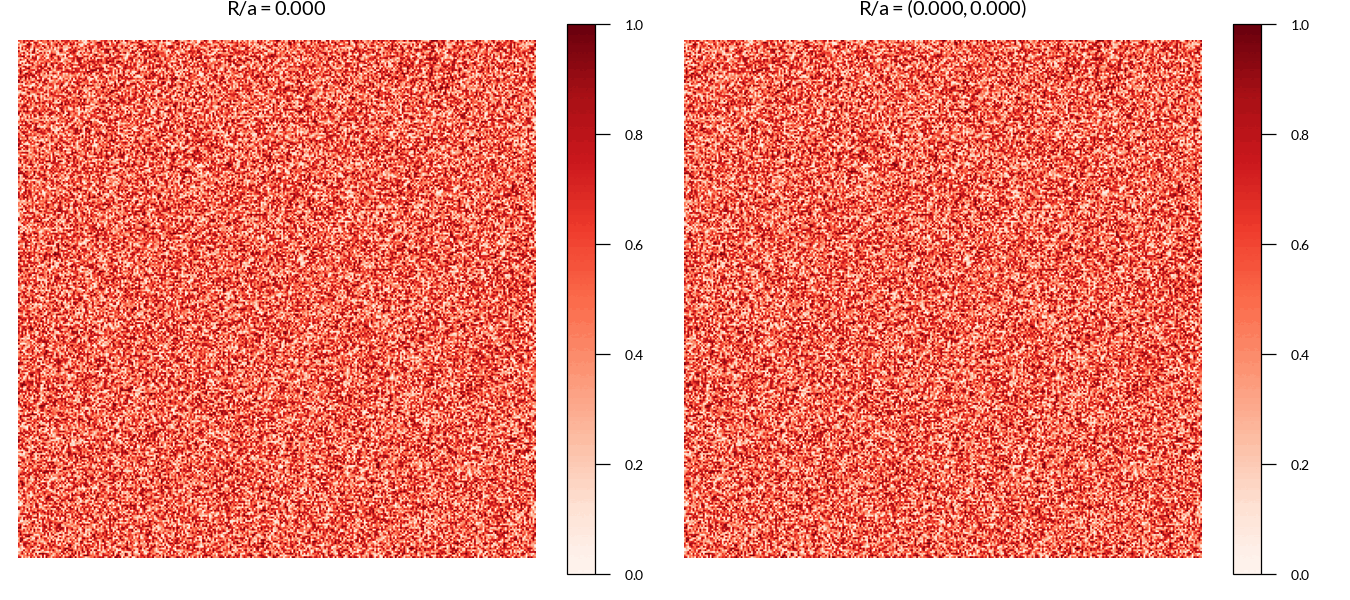

• Filtering
  Convolution: \(f(\B r) = \frac{1}{A}{\rm exp}(-|\B r|^2 /R_f^2)\), with \(\int_{\Omega_{\rm des}} f(\B r) =1\) \[\begin{equation*} \densf(\B r) = p * f = \int_{\Omega_{\rm des}} p(\B r') f(\B r -\B r') {\rm d} \B r' \label{eq:gaussian_filt} \end{equation*}\] PDE: \(-R_f^2 \B\nabla ^2 \densf + \densf = p {\quad\rm on \,}\Omega_{\rm des}, \grad\densf\cdotp\B n = 0 {\quad\rm on \,}\partial\Omega_{\rm des}\) (Lazarov et al. 2011)

Topology optimization: recipes

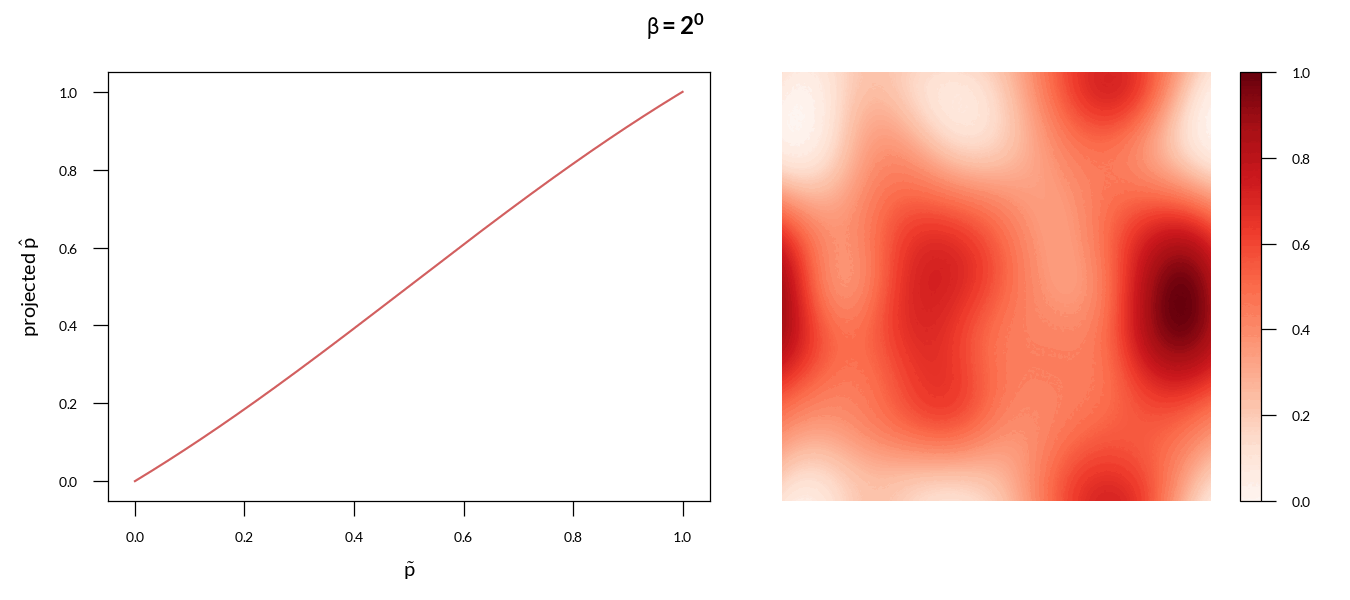

• Projection

  \[\densp(\densf) = \frac{\tanh\left[\beta\nu\right] + \tanh\left[\beta(\densf-\nu)\right] }{\tanh\left[\beta\nu\right] + \tanh\left[\beta(1-\nu)\right]}\] with \(\nu=1/2\) and \(\beta>0\) increased during the course of the optimization. (Wang et al. 2010)

• Interpolation

  \(\varepsilon(\densp)=(\varepsilon_{\rm max}-\varepsilon_{\rm min})\,\densp^m + \varepsilon_{\rm min}\) (Bendsøe et al. 1999)

Algorithm

• gradient based optimization algorithm
  method of moving asymptotes (Svanberg 2002), free implementation via the nlopt package (Johnson 2007)
• 40 iterations or until convergence on the objective or design variables
• repeated setting \(\beta =2^n\), where \(n\) is an integer between 0 and 7, restarting the algorithm with the optimized density obtained at the previous step

Computing gradients

Computing gradients

Solution vector \(\B u\) depends on a vector of parameters \(\B p\) of size \(M\) and defined implicitly through an operator \(\B F\) as: \[ \B F(\B u, \B p) = \B 0 \qquad(1)\]

\(\B G\) is a functional of interest of dimension \(N\), representing the quantity to be optimized

Finite differences

\[ \frac{\mathrm{d}\B G}{\mathrm{d}p_i} \approx \frac{\B G(\B p + h \B e_i) - \B G(\B p)}{h} \] where \(\B e_i\) is the vector with \(0\) in all entries except for \(1\) in the \(i^{th}\) entry.

• numerical inaccuracy
• expensive for large \(M\) and/or \(N\)

Computing gradients

Tangent linear equation

Explicitly, the gradient can be computed applying the chain rule: \[ \frac{\mathrm{d}\B G}{\mathrm{d}\B p} = \frac{\partial \B G}{\partial \B p} + \frac{\partial \B G}{\partial \B u} \frac{\mathrm{d}\B u}{\mathrm{d}\B p}. \qquad(2)\] Taking the total derivative of Equation 1 we obtain the tangent linear equation: \[ {\frac{\partial \B F(\B u, \B p)}{\partial \B u}} {\frac{\mathrm{d}\B u}{\mathrm{d}\B p}} = {-\frac{\partial \B F(\B u, \B p)}{\partial \B p}}. \]

Adjoint equation

Assuming the tangent linear system is invertible, we can rewrite the Jacobian as: \[ \frac{\mathrm{d}\B u}{\mathrm{d}\B p} = - \left(\frac{\partial \B F(\B u, \B p)}{\partial \B u}\right)^{-1} \frac{\partial \B F(\B u, \B p)}{\partial \B p}. \] After substituting this value in Equation 2 and taking the adjoint (Hermitian transpose, denoted by \(\dagger\)) we get: \[ \frac{\mathrm{d}\B G}{\mathrm{d}\B p}^{\dagger} = \frac{\partial \B G}{\partial \B p}^{\dagger} - \frac{\partial \B F(\B u, \B p)}{\partial \B p}^{\dagger} \left(\frac{\partial \B F(\B u, \B p)}{\partial \B u}\right)^{-\dagger} \frac{\partial \B G}{\partial \B u}^{\dagger} . \]

Computing gradients

Adjoint equation

Defining the adjoint variable \(\B \lambda\) as: \[ \B \lambda = \left(\frac{\partial \B F(\B u, \B p)}{\partial \B u}\right)^{-\dagger} \frac{\partial \B G}{\partial \B u}^{\dagger} \] we obtain the adjoint equation \[ \left(\frac{\partial \B F(\B u, \B p)}{\partial \B u}\right)^{\dagger} \B \lambda = \frac{\partial \B G}{\partial \B u}^{\dagger}. \]

Automatic differentiation (AD)

• A general way of taking a program which computes a value, and automatically constructing a procedure for computing derivatives of that value, accurately to working precision, and using at most a small constant factor more arithmetic operations than the original program (Griewank et al. 2008)

• Not finite differences / symbolic differentiation
• Procedure:
  1. Decompose original code into intrinsic functions (build computational graph)
  2. Differentiate the intrinsic functions, effectively symbolically
  3. Multiply together according to the chain rule
• Automation:
  • Source code transformation
  • Operator overloading

Automatic differentiation (AD)

\(f: \mathbb{R}^M \rightarrow \mathbb{R}^N\)

Example: \(f(x_1,x_2) = x_1x_2 + \sin(x_1)\)

Forward mode

• more efficient if \(N\gg M\)

Reverse mode

• more efficient if \(M \gg N\)
• need to store intermediate values

Finite Element Method

Open-source code

Finite Element Method

Implementation

Open source libraries with bindings for the python programming language using a custom code gyptis (Vial 2022).

• Geometry and mesh generation: gmsh (Geuzaine et al. 2009)
• FEM library: fenics using second order Lagrange basis functions (Alnæs et al. 2015)
• Gradient calculations: dolfin-adjoint library with automatic differentiation (Mitusch et al. 2019)

gyptis

Finite Element Method

Application: Bi-focal lens

Objective: focal point at two different locations depending on the excitation frequency (Vial, Whittaker, et al. 2022) \[ \max_{p(\B r)} \quad \Phi = \left|E_1(\omega_1,\B r_1)\right| + \left|E_2(\omega_2,\B r_2)\right| \]

Optimization history

Finite Element Method

Inverse design of superscatterers

Objective: maximize the normalized scattering width (Vial and Hao 2022) \[ \max_{p(\B r)} \quad \Phi = \sigma_s/2R \]

TE

TM

Finite Element Method

Inverse design of superscatterers

Spectra

Quasi Normal Modes expansion

Fourier Modal Method

Open-source code

Fourier Modal Method (FMM)

• AKA Rigorous Coupled Wave Analysis (RCWA)
• Suited for a specific type of periodic structure made up of stacked structured layers
• Key idea: expand the electromagnetic fields within each layer into eigenmodes represented using a Fourier basis in the plane of periodicity (Lalanne et al. 1996; Granet et al. 1996; Whittaker et al. 1999; Liu et al. 2012)

Implementation

FMM and PWEM in python with various numerical backends for core linear algebra operations and array manipulation

• numpy (Harris et al. 2020)
• scipy (Virtanen et al. 2020)
• autograd (AD) (Maclaurin et al. 2015)
• pytorch (AD + GPU) (Paszke et al. 2019, 2017)
• jax (AD + GPU) (Bradbury et al. 2018)

nannos

FMM benchmark

Application: metasurface

Objective: maximize the average of the transmission coefficient in the \((1,0)\) diffracted order for both polarizations: \[ \max_{p(\B r)} \quad \Phi = \frac{1}{2} \left( T^{\rm TE}_{(1,0)} + T^{\rm TM}_{(1,0)}\right) \]

Application: metasurface

Optimized metasurface

Plane Wave Expansion Method

Open-source code

Plane Wave Expansion Method

• 2D, possibly \(z\)-anisotropic materials in \(\varepsilon\) and \(\mu\), non dispersive
• Polarization decouple, expand the \(z\) components as: \[ u(\B{r})=\sum_{\B {G}} u_{\B {G}}\, {\rm e}^{i(\B {k}+\B {G}) \cdot \B{r}}, \label{eq:pwem1} \]
• After Fourier transforming Maxwell’s equations and recombining the relevant \(z\) component of the fields, we get the following generalized eigenproblem: \[ \mathcal{Q}^{\rm T} \,\hat{\tens{\theta}_\parallel}^{-1}\,\mathcal{Q}\, \Phi = k_0^2 \,\chi_{zz}\, \Phi \qquad(3)\] \(\tens{\theta}_\parallel=\tens{\mu}_\parallel\) for TM and \(\tens{\varepsilon}_\parallel\) for TE polarization, \(\mathcal{Q} = \left[\hat{k}_{y}, -\hat{k}_{x}\right]^{\rm T}\) and \(\Phi=\left[u_{\B{G}_{1}}, u_{\B{G}_{2}}, \ldots\right]^{\rm T}\)
• Reduced Bloch Mode Expansion (Hussein 2009), only solving Equation 3 at symmetry points of the first Brillouin zone and performing a second expansion using those modes as a basis set.

protis

Photonic crystals: maximizing bandgaps

• TE modes, square array with enforced \(C_4\) symmetry on the unit cell, \(\varepsilon_{\rm min}=1\) (air) and \(\varepsilon_{\rm max}=9\)

Objective: open and maximize a bandgap between the \(5^{th}\) and \(6^{th}\) eigenvalues:\[\begin{equation*}\max_{p(\B r)} \quad \Phi = \min_{\B k} \omega_{6}(\B k) - \max_{\B k} \omega_{5}(\B k)\end{equation*}\]

• Final distribution in agreement with simple geometrical rules: the walls of an optimal centroidal Voronoi tessellation with \(n=5\) points (Sigmund et al. 2008)

Photonic crystals: dispersion engineering

• TM modes, symmetry with respect to \(y\)

Objective: obtain a prescribed dispersion curve for the \(6^{th}\) band \[\begin{equation*}\min_{p(\B r)} \quad \Phi = \left\langle\left|\omega_{6}(k_x) - \langle \omega_{6}\rangle - \omega_{\rm tar}(k_x) \right|^2\right\rangle \end{equation*}\] with \[\begin{align*}\omega_{\rm tar}(k_x) =& -0.02 \cos(k_x a) + 0.01 \cos(2 k_x a) \\ &+ 0.007 \cos(3 k_x a)\end{align*}\] \(\langle f\rangle =\frac{1}{M}\sum_{m=0}^M f_m\)

Open source

Open source

• Free software: low cost, portable, customizable, vendor-independent
• Widely used programming language, is easily installable and integrates with the rich and growing scientific Python ecosystem
• Reproducible and collaborative research
• Auto-differentiation: inverse design of photonic structures and metamaterials with improved performances and explore intriguing effects

Get the code

• Development on gitlab: continuous integration for testing and documentation deployment
• Install / fork it / run it online / report bugs!

FEM

pip install gyptis

conda install -c conda-forge gyptis

FMM

pip install nannos

conda install -c conda-forge nannos

PWEM

pip install protis

gyptis.gitlab.io

nannos.gitlab.io

protis.gitlab.io

Freeware list

https://github.com/joamatab/awesome_photonics

Thank you!
